‹ Home › Inventory › 2025 Harley-Davidson® Pan America® 1250 ST Billiard Gray

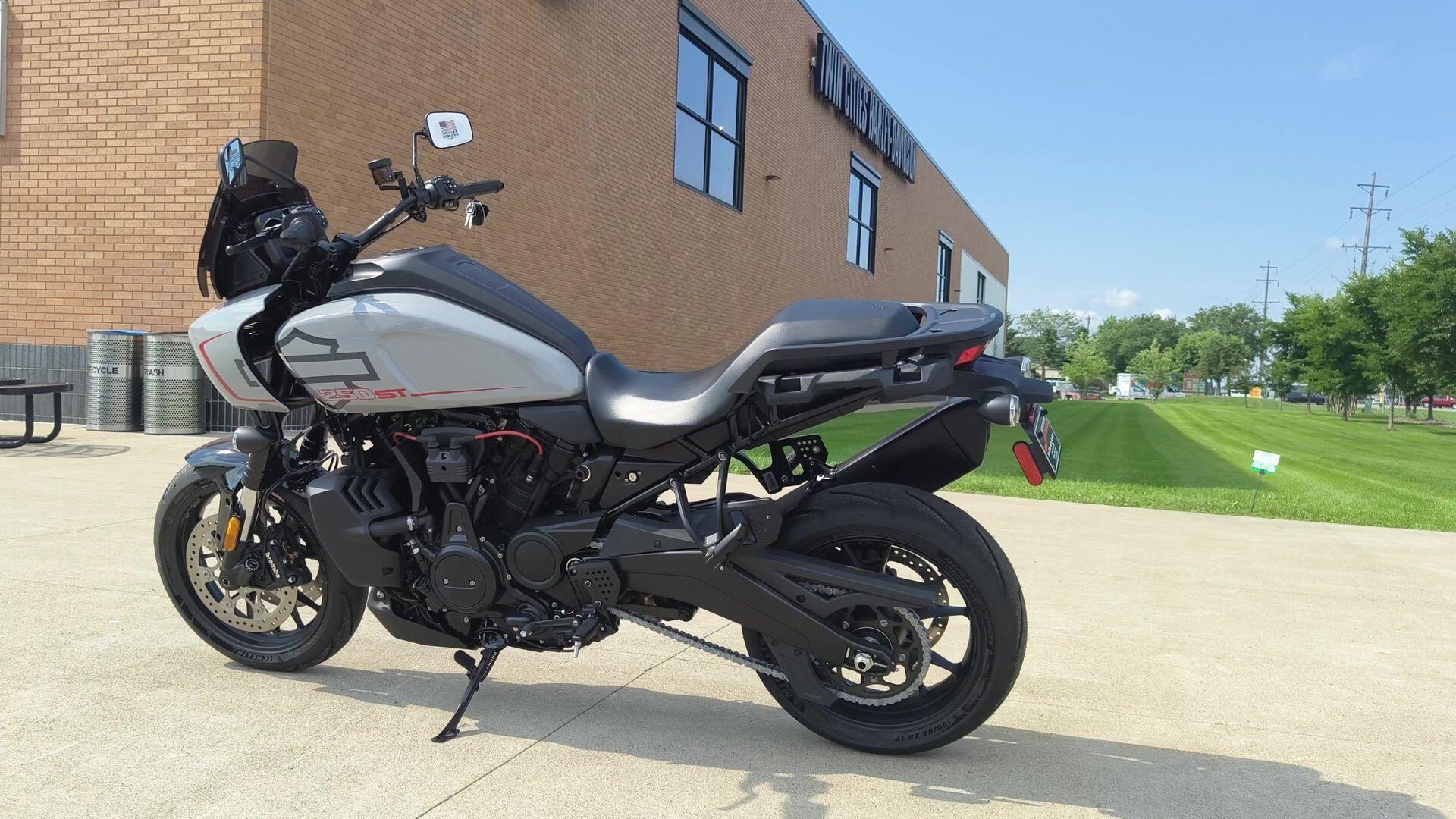

This new Billiard Gray 2025 Harley-Davidson Pan America 1250 ST premiers with a 1250cc engine and 6-Speed transmission is for sale at Twin Cities Harley-Davidson North located in Blaine, Minnesota. Contact Twin Cities Harley-Davidson of Blaine, Minnesota today to schedule a test-ride. If this isn't the exact Harley-Davidson you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Blaine, MN. Visit Twin Cities Harley-Davidson North of Blaine, your MN Harley-Davidson dealership. Minnesota’s premier new & used motorcycle dealer, we'll help you ride home on a new Harley-Davidson today!

Easy Financing. Call Us Today! 763-786-9079

Specifications

Dimensions

add remove
- Length:

  88.2 in
- Ground clearance:

  6.7 in
- Rake (steering head):

  25
- Trail:

  3.7 in
- Wheelbase:

  61.8 in
- Tires, front specifications:

  120/70R19 60V
- Tires, rear specifications:

  180/55ZR17 73W
- Fuel Capacity:

  5.6 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  507 lbs
- Weight, in running order:

  542 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  91.5 ft-lb
- Engine torque (RPM):

  6750
- Horsepower:

  149 HP / 111 kW @ 8750 rpm
- Lean angle, right (deg.):

  37
- Lean angle, left (deg.):

  37
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
- ABS:

  Standard
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
